Solaire Gas Infrared Gas Grill 21

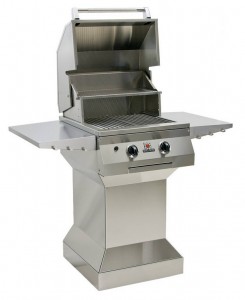

21″ Solaire Infrared Grill on Pedestal

Solaire Gas Infrared Gas Grill 21

21″ Solaire Infrared Grill on Pedestal

21″ Solaire® Infrared Grill

Basic (IRBQ-21G)

  • Two main burners at 18,000 BTU/hour total
  • 222 sq.in. Effective Grilling Area (EGA); 359 sq.in. Total Grilling Area (TGA)





Deluxe (IRBQ-21GXL)

  • Two main burners at 24,000 BTU/hour total
  • 270 sq.in. Effective Grilling Area (EGA); 403 sq.in. Total Grilling Area (TGA)
  • 3″ deeper than Standard model for over 20% more EGA than Basic 21″



The 21″ Solaire® Infrared Grill is a small grill that is just as powerful as the larger Solaire grills. It’s the perfect size for small balconies and tight spaces.

Standard features for all 21″ models include:
  • Two Stainless Steel main burners with either ceramic infrared, double-lanced ported U-burners, or both. Easily removable for cleaning or conversion.
  • Pushbutton rapid-start electronic ignition.
  • All stainless steel construction with heli-arc welded seams and no mechanical fasteners.
  • Hand-polished mirror finish accents.
  • Limited lifetime warranty on stainless steel construction, main burners and V-grilling grids; two years on ignition system; one year on everything else.
  • Built-in units feature top-supported, self-trimming design.
  • Pedestal Base with four casters for easy movement on your patio. Built-in grill is placed on Pedestal to make complete unit.
  • Double skin hood with stay-cool, full-width stainless steel tubular knurled handle.
  • Stainless steel V-grilling grids enhance flavor and reduce flare-ups.
  • Removable stainless steel warming rack and drip tray.
  • Folding side shelves on pedestal
  • Accessories available include: Cover (Built-in or Pedestal), BBQ Tray, Griddle Plate, Wood Chip Smoker, Insulated Jacket, Infrared Burner, Convection Burner.

Dimensions: (scroll down to see chart below photos)

EGA = Effective Grilling Area (grilling grid area open to the direct heat).
TGA = Total Grilling Area (grilling grid plus warming rack areas).

Click on images below to enlarge

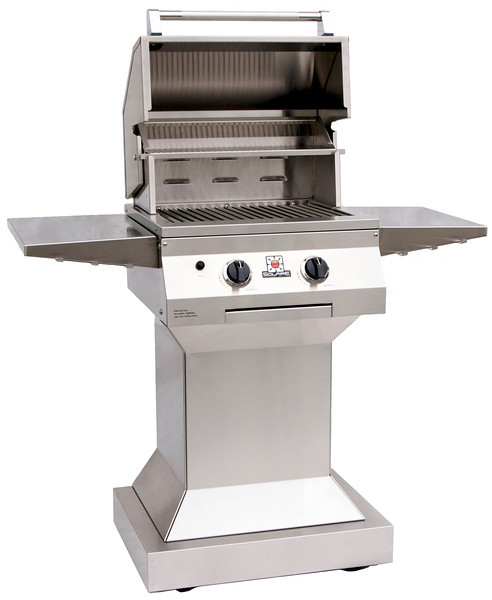

Cart Model (IRBQ-21G-PED)

Cart Model (IRBQ-21GXL-PED)

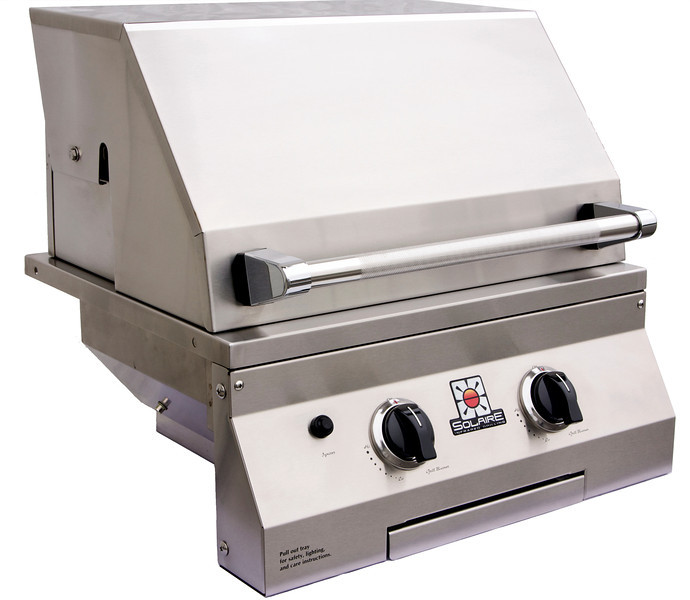

Built-In Model (IRBQ-21)

Solaire Model (IRBQ-21XL)

Dimensions (in inches)
Pedestal/Cart Models 21G 21GXL
Width – Shelves Down 27.50 27.50
Width – Shelves Up 45.38 45.38
Width – On shelve up, one down 36.50 36.50
Depth – Hood Down 20.00 25.00
Depth – Hood Up 20.5 26
Height – Hood Up 55 60.25
Height – Hood Down 46.5 48
Height of Grilling Surface 36 36
Grilling Area Width 17.75 17.75
Grilling Area Depth 12.75 15.25
Effective Grilling Area 226.31 270.69
Warming Rack Width 19 19
Warming Rack Depth 7 7
Warming Rack Area 133.00 133.00
Total Grilling Area* 359.31 403.69
Capacity – 4″ dia. Hamburger patties 9 12



Built-in Models 21G 21GXL
Width – Cut-out 20.00 20.00
Depth – Cut-out 16.25 21.00
Height – Cut-out 7.88 7.88
Note: Notch out required for flush mount – See https://solairegasgrills.com/products/built-in-gas-grills/



Width (overall) 21.00 21.00
Depth (overall) 20.00 25.00
Height above counter-Hood Up 20.50 25.13
Height above counter-Hood Down 12.00 12.88
Grilling Area Width 17.75 17.75
Grilling Area Depth 12.75 15.25
Effective Grilling Area 226.31 270.69
Warming Rack Width 19.00 19.00
Warming Rack Depth 7.00 7.00
Warming Rack Area 133.00 133.00
Total Grilling Area* 359.31 403.69
Capacity – 4″ dia. Hamburger patties 9 12
